Khoom Taw Qhia

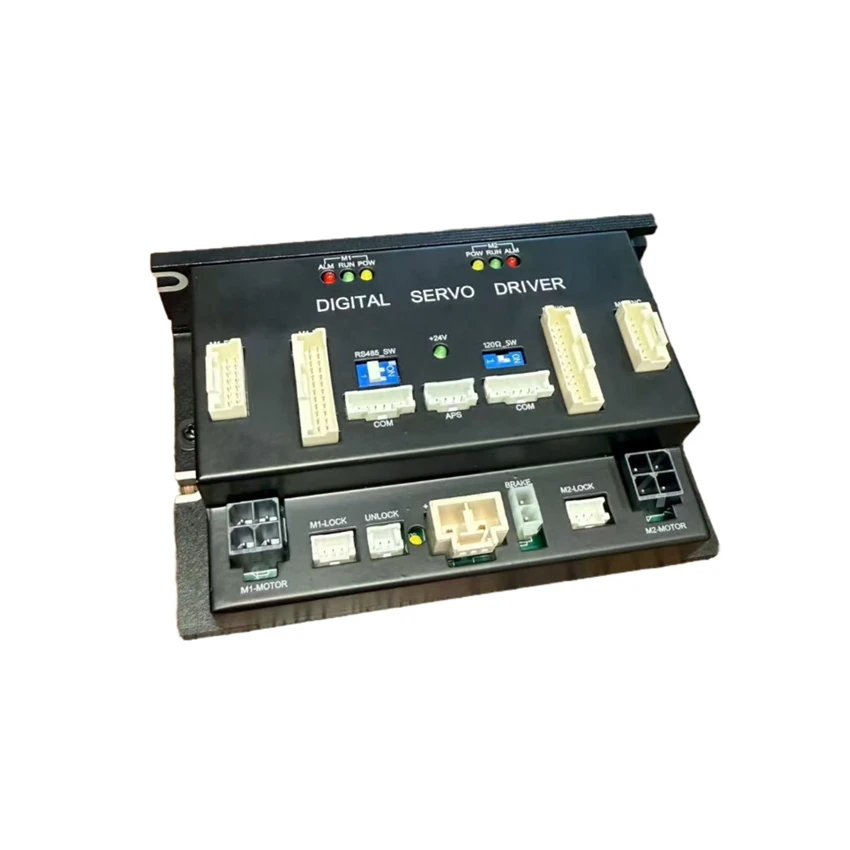

IXLD Series yog ib qho kev sib xyaw ua ke zoo dual -channel servo tsav tsim los rau kev ua haujlwm tau zoo thiab kev cog lus ntau -axis motion control applications. Nws txhawb nqa ob lub cev muaj zog tso tawm nyob rau hauv ib chav tsev, muab qhov chaw -txuag thiab nqi- cov kev daws teeb meem zoo rau cov tshuab uas xav tau synchronized lossis sib koom ua ke-xws li AGVs, compact robotic arms, gantry systems, thiab automation platforms.
Ua hauj lwm nyob rau hauv huab cua kub mus rau-50 degree, nws yog tsim los rau kev ntseeg siab hauv kev xav tau kev lag luam, sab nraum zoov, thiab txias -chain ib puag ncig.
Ntsiab nta & Performance Parameters
|
Parameter |
Specification |
|
Cov channel |
Dual ywj siab motor outputs |
|
Rated Tam sim no ib Channel |
16A nruam |
|
Peak Current per Channel |
32A |
|
Input Voltage Range |
20-80 VDC |
|
Tsav Compatibility |
BLDC, Brushed DC, PMSM |
|
Tswj txoj kev |
Pulse / Direction, Analog Voltage (± 10V) |
|
Kev sib txuas lus raws tu qauv |
CANOPE, Modbus |
|
Kev them nyiaj yug encoder |
Incremental, Absolute (NRZ Tamagawa, BiSS C, SSI) |
|
Ua haujlwm kub |
-50℃rau + xx℃(ambient raws li cua txias) |
|
Cov ntawv pov thawj |
CE, UL ua raws (yuav tsum tau lees paub zaum kawg) |
Khoom zoo
|
Qhov zoo |
Kev piav qhia |
|
Chaw & Nqi Ua Haujlwm |
Ib tug tsav tswj ob lub cev muaj zog, txo qhov kev hneev taw, thaiv kev sib txuas, thiab tag nrho cov nqi. |
|
Siab zog ceev |
Muab 32A ncov tam sim no rau ib qho channel hauv daim ntawv cog lus, zoo tagnrho rau lub zog- txwv tsis pub siv lub xov tooj ntawm tes thiab embedded systems. |
|
Wide Compatibility |
Txhawb nqa txhua yam qis-voltage motor hom thiab mainstream absolute encoder protocols rau kev sib xyaw ua ke. |
|
Ib puag ncig txaus npaj |
Rated rau -50℃kev ua haujlwm, ua kom muaj kev ua tau zoo hauv kev khov sab nraum zoov, txias cia, thiab hnyav kev lag luam. |
|
Kev sib koom ua ke yooj yim |
Standard CANopen thiab Modbus interfaces ua kom tsis muaj kev sib txuas rau PLCs, cov tswj hwm, thiab IoT platforms. |
Kev Pabcuam Peb Muab
|
Kev pabcuam |
Paub meej |
|
Custom Configuration |
Tuning ntawm kev tswj tsis, teeb tsa kev sib txuas lus, thiab encoder txuam rau koj cov motors tshwj xeeb. |
|
Kev them nyiaj yug Prototyping |
Kev muab cov qauv engineering thiab kev txhawb nqa rau kev sib koom ua ke. |
|
Cov ntaub ntawv technical |
Cov ntaub ntawv nthuav dav, kab kos duab, Modbus/CANopen profile qhia, thiab API cov ntaub ntawv. |
|
Kev taw qhia kev sib koom ua ke |
Kev pab nrog ntau -axis synchronization, thermal design, thiab network configuration. |
|
Scalable Manufacturing |
Kev them nyiaj yug los ntawm qis- ntim batch mus rau siab - ntim ntau lawm nrog kev tswj kom zoo. |
|
Ua raws li & Daim ntawv pov thawj |
Kev nkag mus rau cov ntaub ntawv xeem thiab kev txhawb nqa rau cov ntawv pov thawj hauv cheeb tsam txuas ntxiv (CE, UL, UKCA, thiab lwm yam). |
